• Type
  27″ TFT LCD, LED Backlight
  27″ TFT LCD, LED Backlight
• Resolution
  1080 x 1920
  1080 x 1920
• Brightness
  300 cd/m² (typ.)
  300 cd/m² (typ.)
• Touchscreen
  Projected Capacitive Touch
  Projected Capacitive Touch
• Response
  12 ms
  12 ms
• Contrast Ratio
  3000 (typ.)
  3000 (typ.)

Interface

• USB
  2 x USB 2.0
  2 x USB 2.0
• Serial
  2 (COM2~3, RJ-45, Full Signal)
  2 (COM2~3, RJ-45, Full Signal)
• LAN
  1 x Gigabit Ethernet (RJ-45)
  1 x Gigabit Ethernet (RJ-45)
• Power DC-IN
  DIN 3 Pin Jack
  DIN 3 Pin Jack
• Power Supply
  Adaptor 24V, 6.35A
  Adaptor 24V, 6.35A

Pedestale

• Material
  Galvanized Steel Plate
  Galvanized Steel Plate
• Material Thickness
  1.2T
  1.2T
• Component Access
  Security Locks with 7-Pin Tumbler / Rear Security Door
  Security Locks with 7-Pin Tumbler / Rear Security Door

Physical Environment

• Operating Temperature
  0 ℃ ~ 60 ℃ at 10% to 90% Humidity
  0 ℃ ~ 60 ℃ at 10% to 90% Humidity
• Storage Temperature
  -20 ℃ ~ 80 ℃ at 10% to 90% Humidity
  -20 ℃ ~ 80 ℃ at 10% to 90% Humidity
• Dimensions (W x D x H)
  System: 426 x 135 x 880(mm), 16.7 x 5.3 x 34.6(in)
  Pedestal: 426 x 135 x 870(mm), 16.7 x 5.3 x 34.2 (in)
  Base plate: 600 x 450 x 10(mm), 23.6 x 17.7 x 0.4(in)

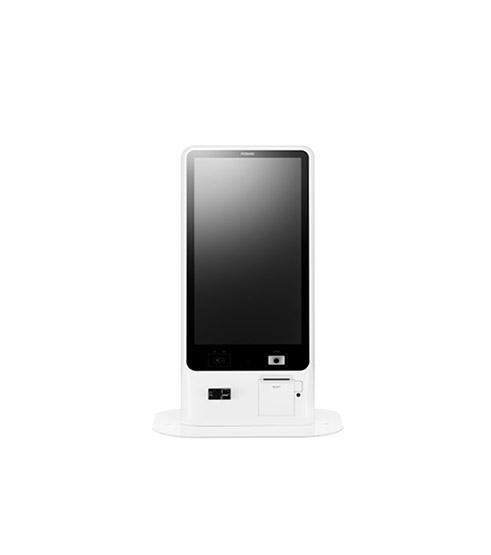

  Base plate (Counter Top): 466 x 295 x 6(mm), 18.3 x 11.6 x 0.2(in)
  System: 426 x 135 x 880(mm), 16.7 x 5.3 x 34.6(in)
  Pedestal: 426 x 135 x 870(mm), 16.7 x 5.3 x 34.2 (in)
  Base plate: 600 x 450 x 10(mm), 23.6 x 17.7 x 0.4(in)
  Base plate (Counter Top): 466 x 295 x 6(mm), 18.3 x 11.6 x 0.2(in)
• Packing Dimensions (W x D x H)
  System: 515 x 265 x 980 (mm), 20.2 x 10.4 x 38.5 (in)
  Pedestal: 515 x 265 x 980 (mm),​ 20.2 x 10.4 x 38.5 (in)
  Base plate: 770 x 550 x 65 (mm),​ 30.3 x 21.6 x 2.5 (in)
  System: 515 x 265 x 980 (mm), 20.2 x 10.4 x 38.5 (in)
  Pedestal: 515 x 265 x 980 (mm),​ 20.2 x 10.4 x 38.5 (in)
  Base plate: 770 x 550 x 65 (mm),​ 30.3 x 21.6 x 2.5 (in)
• Net Weight
  System: 15kg, 33.06 lbs
  Pedestal: 13kg, 28.66 lbs
  Base plate: 20kg, 44.09 lbs
  System: 15kg, 33.06 lbs
  Pedestal: 13kg, 28.66 lbs
  Base plate: 20kg, 44.09 lbs
• Packing Weight
  System: 21kg, 46.29 lbs
  Pedestal: 17kg, 37.47 lbs
  Base plate: 21kg, 46.29 lbs
  System: 21kg, 46.29 lbs
  Pedestal: 17kg, 37.47 lbs
  Base plate: 21kg, 46.29 lbs
• Certification
  CE, FCC, KC
  CE, FCC, KC
• Color
  High Gloss White / High Gloss Black / Custom Colors Available
  High Gloss White / High Gloss Black / Custom Colors Available

Options

• Storage
  2.5 inch SSD 128GB, HDD 500GB, 1TB
  M.2 2242-D2-M (SATA or NVMe)
  N/A
• Built-in Printer
  3″ Jam-Free Thermal, Max. 250mm/s, Auto Cutter
  Interface : Serial, USB
  3″ Jam-Free Thermal, Max. 250mm/s, Auto Cutter
  Interface : Serial, USB
• Barcode Scanner
  1D / 2D
  1D / 2D
• Camera
  1 x 5M Pixel (Internal USB Interface)
  1 x 5M Pixel (Internal USB Interface)
• Magnetic Stripe Reader
  Comply with ISO 7811, Support 1 & 2 & 3 Track
  Comply with ISO 7811, Support 1 & 2 & 3 Track
• Smart Card Reader
  EMV Level 1
  EMV Level 1
• NFC Reader
  MIFARE, FeliCa, ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693
  MIFARE, FeliCa, ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693

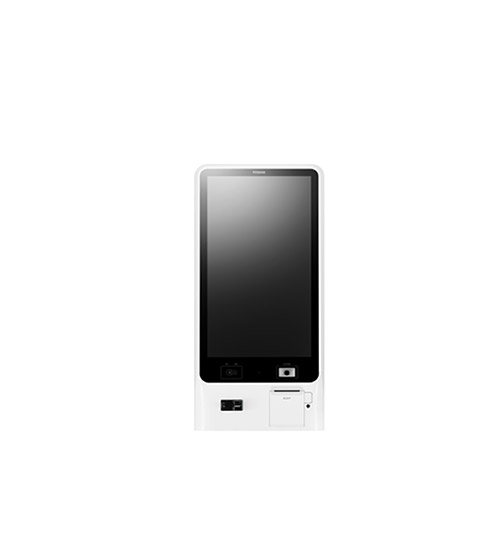

• Wall Mount Kit
  VESA, 100 x 100 (mm), 200 x 200 (mm)
  VESA, 100 x 100 (mm), 200 x 200 (mm)
• Speaker
  1 x 5W (Mono), 2 x 5W (Stereo) (Factory Option)
  1 x 5W (Mono), 2 x 5W (Stereo) (Factory Option)
• WiFi
  M.2 for WiFi/BT
  Wi-Fi 2.4G/5G (802.11 a/b/g/n, 2.4G/5G), BT 5.0 Combo (Factory Option)
• Custom Options
  Customer-Assigned EMV Terminal Bracket, Bill/Coin Acceptor, Document Reader (Passports/IDs), Ticket/Document Printer, UPS (Uninterruptible Power Supply)
  Customer-Assigned EMV Terminal Bracket, Bill/Coin Acceptor, Document Reader (Passports/IDs), Ticket/Document Printer, UPS (Uninterruptible Power Supply)
